Features

• Low Insertion Loss

• Wide Wavelength Range

• Low Crosstalk

• High Stability, High Reliability

• Epoxy-free on Optical Path

• Latching and Non-latching

• Application

• Metropolitan Area Network

• R&D in Laboratory

• System Monitoring

• Configurable OADM

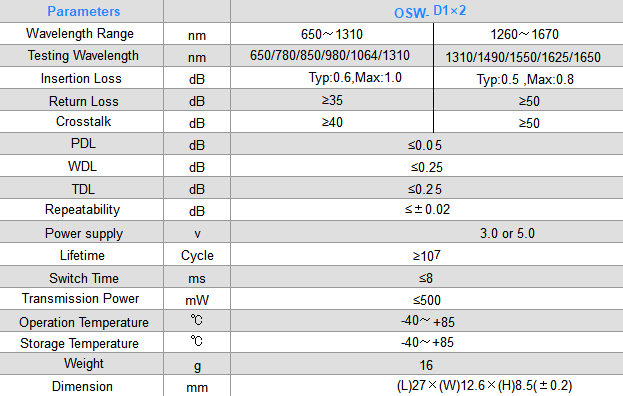

• Performance

•

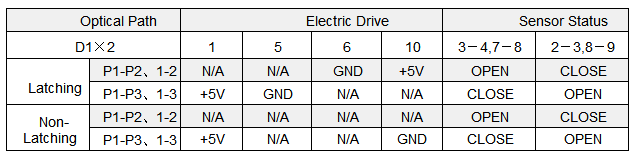

• Route States


Pins

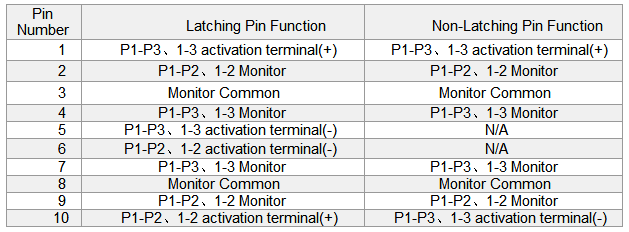

Pin Description

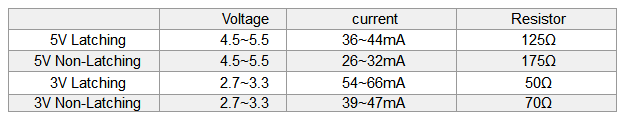

Electrical parameters

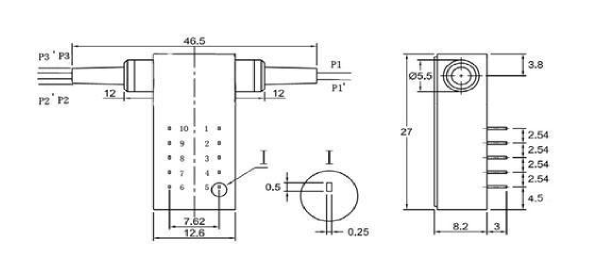

Dimensions

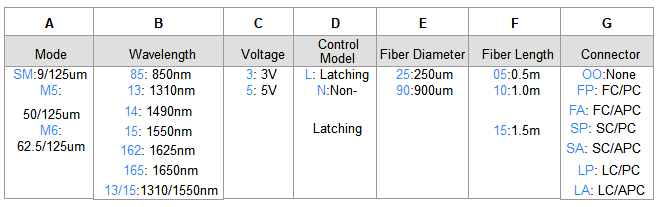

Ordering Information：OSW－D1×2－A－B－C－D－E－F－G
