D1×N Optical Switch (Stepper Motor )
Features
Up to 32 channels
Low loss and high reliability
Parallel interface (TTL,RS485,RS232)
Modularized design
Applications
Ring network
Remote monitoring in optical network
Testing of fiber optical component
Epoxy-free in optical path

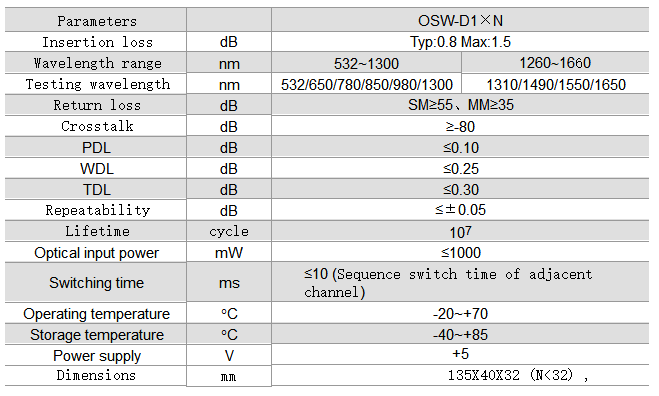

Specifications:

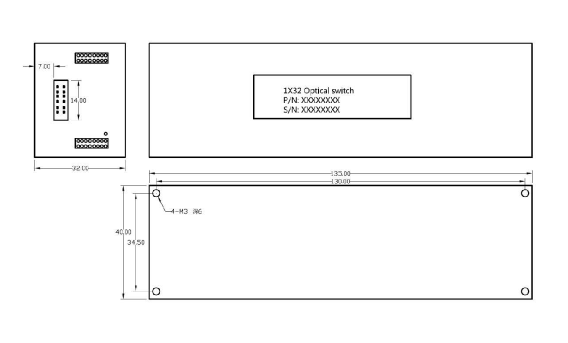

Dimensions:

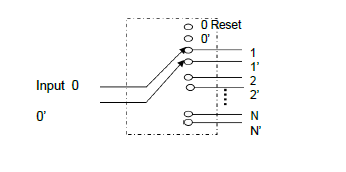

Optical Route:

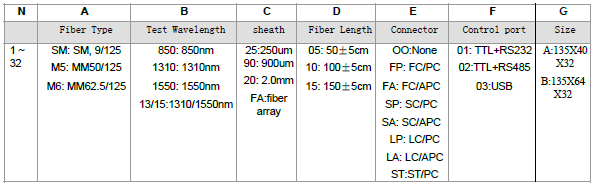

Ordering Information : OSW-D1×N-A-B-C-D-E-F-G
